Kingston has taken their KC2000 NVMe PCIe SSD and upgraded it to the KC2500 lineup boosting the performance quite a bit to bring it much more in line with more performance tier drives. The Kingston KC2500 lineup is using same basic arrangement as the previous KC2000 with a Gen 3.0 x4 Silicon Motion SM226EN controller taking the lead on Toshiba’s 96-layer 3D TLC NAND. They’re claiming read speeds reaching up to 3500MB/s and 2900MB/s write speeds (KC2000 saw 3200MB/s and write speeds up to 2200MB/s). The KC2500 is still targeting more of the professional and high powered computing markets first while still being a much more solid option for enthusiast builders and gamers thanks to the increased speed. Security has been all over the news lately thanks to certain chipmakers and is a primary focus on the KC2000 with their 256-bit AES Hardware-based encryption and compatibility with TCG Opal 2.0 security solutions along with built-in support for Microsoft eDrive support.
First Look At The Kingston KC2500 1TB NVMe SSD – Unboxing And Closer Look
The packaging of the Kingston KC2500 is a bit underwhelming coming in a blister pack rather than a nice box like so many others. While this surely doesn't reflect the quality of the product it can be a bit offputting to those who live to collect their boxes for future use, this one will end up right in the trash for most. It does come with a bundled key for Acronis True Image so you can easily replace your existing storage solution with this one, a welcome value add that isn't advertised on the package. The biggest complaint I have for the packaging is the omission of critical data points, the only idea of the performance you get is 45x faster than a spinning rust drive. Higher tier drives like this miss an opportunity to inform a potential customer in a store just what they're buying.
Kingston KC2500 Lineup
Kingston KC2500 Lineup
| KC2500 250GB | KC2500 500GB | KC2500 1TB | KC2500 2TB | |
|---|---|---|---|---|
| Controller | Silicon Motion SM2262EN | Silicon Motion SM2262EN | Silicon Motion SM2262EN | Silicon Motion SM2262EN |
| NAND Flash | Toshiba BiCS4 96L TLC | Toshiba BiCS4 96L TLC | Toshiba BiCS4 96L TLC | Toshiba BiCS4 96L TLC |
| Sequential Read | 3500 MB/s | 3,500 MB/s | 3,500 MB/s | 3,500 MB/s |
| Sequential Write | 1200 MB/s | 2,500 MB/s | 2,900 MB/s | 2,900 MB/s |
| Random Read | 375,000 IOPS | 375,000 IOPS | 375,000 IOPS | 375,000 IOPS |
| Random Write | 300,000 IOPS | 300,000 IOPS | 300,000 IOPS | 300,000 IOPS |
| Encryption | AES-256, Opal 2.0, eDrive | AES-256, Opal 2.0, eDrive | AES-256, Opal 2.0, eDrive | AES-256, Opal 2.0, eDrive |
| Warranty | 5 Years | 5 Years | 5 Years | 5 Years |
| Price | $68.99 | $119.99 | $216.99 | $421.99 |
Testing Setup
Our test bench is now using the EVGA Z370 Classified K paired with an Intel Core i9-9900K at 5GHz paired with 16GB DDR4 3600 RAM and decided to go sans dedicated GPU. The reasoning for this is simple as I had to remove the GPU to access the secondary m.2 slot so that I could run the tests. Before starting the tests I loaded the NVMe drive up to 60% capacity so that the testing would not be run on a clean empty drive.
| Component | Model |
|---|---|
| CPU | Intel Core i9-9900K @5GHz |
| Memory | G.Skill Trident Z 2x8GB (16GB) 3200MHz CL16 |
| PSU | Cooler Master V1200P |
| OS | Windows 10-64 Bit |
| Motherboard | EVGA Z370 Classified K |
| Case | Lian Li T70X |

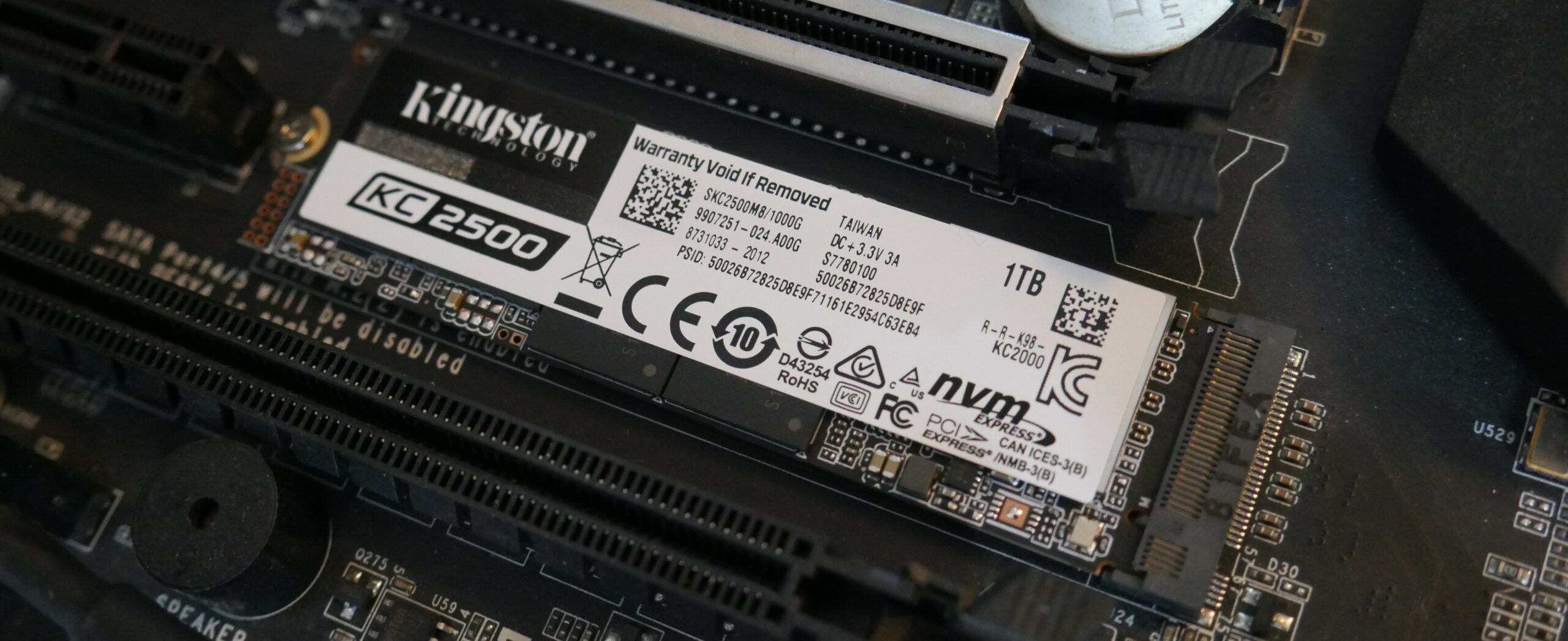

Kingston KC2500 1TB NVMe SSD
ATTO Disk Benchmark
As the industry’s leading provider of high-performance storage & network connectivity products, ATTO has created a widely-accepted Disk Benchmark freeware software to help measure storage system performance. As one of the top tools utilized in the industry, Disk Benchmark identifies performance in hard drives, solid-state drives, RAID arrays as well as the host connection to attached storage. Top drive manufacturers, like Hitachi, build and test every drive using the ATTO Disk Benchmark.The ATTO Disk Benchmark performance measurement tool is compatible with Microsoft Windows. Use ATTO Disk Benchmark to test any manufacturer's RAID controllers, storage controllers, host bus adapters (HBAs), hard drives, and SSD drives and notice that ATTO products will consistently provide the highest level of performance to your storage.
Crystal Disk Mark 6.0
CrystalDiskMark is a disk benchmark software Made by a Japanese coder named Hiyohiyo and is one of the simplest and most frequently used tests for storage due to its simple and easy to understand UI. It measure sequential reads/writes speed,measure random 512KB, 4KB, 4KB (Queue Depth=32) reads/writes speed,select test data (Random, 0Fill, 1Fill).AS SSD
AS SSD is the opposite of ATTO as it uses incompressible data rather than compressible data and simulates the worst possible scenario imaginable for an SSD which gives the best understanding of performance when pushing the drive to its limits.We separate the IOPS and MB/s in the results for ease of reading.
ANVIL's Storage Utilities
Anvil's Storage Utilities benchmark may be a bit of an older benchmark, but it's still very much relevant today. It takes various performance and response time metrics and gives them a score in read and writes then delivers an overall rating, which is useful to see where an HDD or SSD slots in general performance.Software and Security
Security is one of the main features of this drive with the inclusion of 256-bit AES Hardware-based encryption and compatibility with TCG Opal 2.0 security solutions along with built-in support for Microsoft eDrive support. This means you have the ability to set up a password for the drive that will keep its contents safe from prying eyes who don't have that password even if they remove your drive from the computer and install it into another. This may seem like an arbitrary add on for people who aren't too concerned about security, but those who are it is a huge value add, especially for people on the go with sensitive work data.
The Kingston KC2500 drives also come with a key for Acronis Ture Image HD so that you can easily clone your existing drive over to your new one and be up and running quickly.
